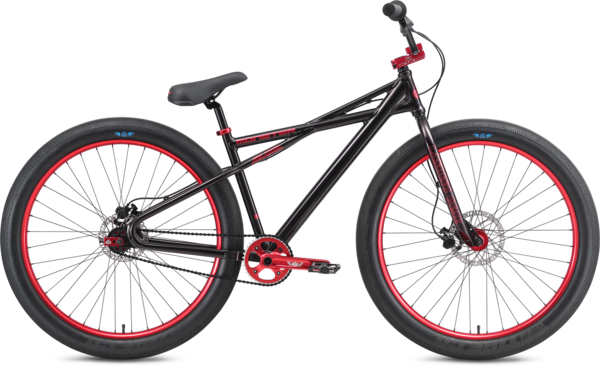

SE Bikes Monster Quad 29-inch
$999.99
Details
The Monster Quad is the ultimate definition of BMX Innovations. Built around huge 29” x 2.8” Vee Speedster tires, this bike is the world’s first 29+ BMX bike. The unique Monster Quad frame design features an oversized downtube, integrated headset, super stiff BB yoke, and a legendary looptail rear end. New this year, the Tektro Auriga hydraulic disc brakes really put this bike over the top. Watch out now, it’s a MONSTER!
| Top Tube, Actual | 23.5" |
|---|---|
| Seat Tube, Center To Top | 16.9" |
| Seat Tube Angle | 71° |
| Head Tube Angle | 71° |
| Chainstay Length | 18.3" |
| Wheelbase | 43.9" |
| Bottom Bracket Height | 13" |
| Standover | 30.5" |
| Stem | 55mm |
| Handlebar Width | 29" |
| Crank | 175mm |
| Wheel Size | 29" |
| Seat Post Diameter | 27.2mm |
Specs
| Frame | 6061 Aluminum, Single Downtube Monster Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Disc Brake Tabs |
|---|---|
| Fork | Landing Gear, Full Cr-Mo, Disc Tabs, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts |
| Wheels | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 20T Cassette, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Speedster, 29" x 2.8" Front & Rear |
| Crankset | SE Racing 175mm Forged Alloy 2-pc Cranks, Pedal Boss Inserts, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring |
| Chain | KMC S1 |
| Brakes | Tektro HD-M285 Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor |
| Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
| Handlebars | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep |
| Tape/Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Headset | FSA Integrated Orbit CE, Sealed 1-1/8" |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Saddle | Monster Flyer Seat w/ Custom SE Bottle Opener Brace |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black Sparkle / One Size / 29-inch | 785749238012 | 29231254029 | SE231646548E |
