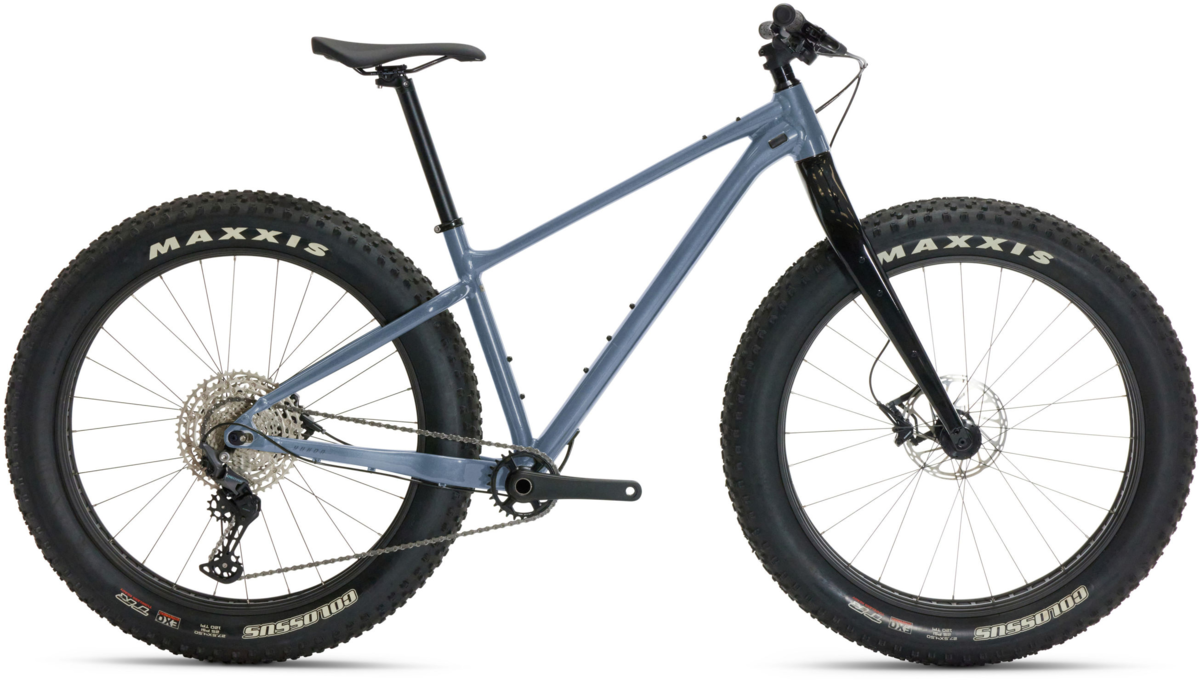

Giant Yukon 2
Details
Why follow tracks when you can make your own? Experience the “foot out, flat out” fun of fat bike riding in any season. Whether you’re tackling fresh snow pack or drifty sand dunes for days, the new Yukon will keep you rallying your favorite terrain in a whole new way.
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
| Frame Size | S (Low - High in inches) | M (Low - High in inches) | L (Low - High in inches) | XL (Low - High in inches) | S (Low - High in mm) | M (Low - High in mm) | L (Low - High in mm) | XL (Low - High in mm) |
|---|---|---|---|---|---|---|---|---|
| Seat Tube Length | 15 | 17 | 19 | 21 | 381 | 432 | 483 | 533 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Top Tube Length | 23 | 23.8 | 24.6 | 25.4 | 585 | 605 | 625 | 645 |
| Head Tube Length | 3.9 | 4.5 | 5.1 | 5.9 | 100 | 115 | 130 | 150 |
| Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
| Fork Rake | 2.4 | 2.4 | 2.4 | 2.4 | 60 | 60 | 60 | 60 |
| Trail | 3.5 | 3.5 | 3.5 | 3.5 | 90.1 | 90.1 | 90.1 | 90.1 |
| Wheelbase | 44.4 | 45.2 | 46.1 | 46.9 | 1128.6 | 1149.8 | 1171.1 | 1192.7 |
| Chain Stay Length |
17.5 | 18.1 |
17.5 | 18.1 |
17.5 | 18.1 |
17.5 | 18.1 |
445 | 460 |
445 | 460 |
445 | 460 |
445 | 460 |
| Bottom Bracket Drop | 3 | 3 | 3 | 3 | 75 | 75 | 75 | 75 |
| Stack | 24.4 | 25 | 25.6 | 26.3 | 621.5 | 635.5 | 649.4 | 668 |
| Reach | 15.6 | 16.1 | 16.8 | 17.3 | 395 | 410.7 | 426.5 | 440.8 |
| Stand Over Height | 28.3 | 28.9 | 30.4 | 31.9 | 719 | 735 | 772 | 811 |
| Handlebar Width | 30.7 | 30.7 | 30.7 | 30.7 | 780 | 780 | 780 | 780 |
| Stem Length | 2 | 2 | 2.4 | 2.8 | 50 | 50 | 60 | 70 |
| Crank Length | 6.7 | 6.7 | 6.9 | 6.9 | 170 | 170 | 175 | 175 |
| Wheel Size | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 |
| Frame Size | S | M | L | XL |
|---|---|---|---|---|
| CM | 163 - 172 | 171 - 180 | 179 - 188 | 187 - 198 |
| Inches | 5'4" - 5'8" | 5'7" - 5'11" | 5'10" - 5'2" | 6'2" - 6'6" |
Specs
| Frame | ALUXX SL-Grade Aluminum with horizontal dropouts, 12x197 |
|---|---|
| Fork | rigid composite with alloy steerer, 15x150, with low rider rack mounts |
| Rims | Giant FBR alloy, 27.5", 85mm |
| Hubs | [F] Giant 15x150 open-race sealed bearings bearing [R] Giant 12x197 open-race sealed bearings bearing |
| Spokes | stainless, 14g |
| Tires | Maxxis Colossus 27.5x4.5, foldable, TR |
| Bottom Bracket | ProWheel, press fit |
| Crankset | ProWheel MPX, 28t S:170mm, M:170mm, L:175mm, XL:175mm |
| Shifters | Shimano Deore, 1x12 |
| Rear Derailleur | Shimano Deore |
| Cassette/Freewheel | Shimano Deore M6100, 10x51 |
| Chain | Shimano |
| Brakes | SRAM Level, hydraulic [F]180mm, [R]160mm rotors |
| Brake Levers | SRAM Level |
| Handlebars | Giant Connect Trail, 780x31.8mm |
| Tape/Grips | Giant Tactal Single |
| Stem | Giant Contact S:50mm, M:50mm, L:60mm, XL:60mm |
| Seatpost | Giant Connect, 30.9mm S:375mm, M:375mm, L:400mm, XL:400 |
| Saddle | Giant Sport Comfort |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Knight Shield / Small / 27.5-inch | 04712878796041 | 2201007104 |
| Knight Shield / Medium / 27.5-inch | 04712878796058 | 2201007105 |
| Knight Shield / Large / 27.5-inch | 04712878796065 | 2201007107 |
| Knight Shield / X-Large / 27.5-inch | 04712878796072 | 2201007108 |
| Phantom Green / Small / 27.5-inch | 04712878796096 | 2201007204 |
| Phantom Green / Medium / 27.5-inch | 04712878796102 | 2201007205 |
| Phantom Green / Large / 27.5-inch | 04712878796119 | 2201007207 |
| Phantom Green / X-Large / 27.5-inch | 04712878796126 | 2201007208 |
