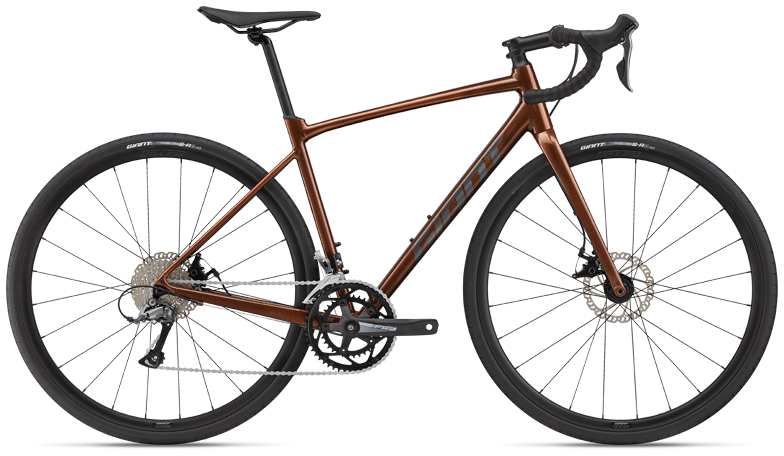

Giant Contend AR 4
Details
Some roads are smooth, others are rough. This smooth-riding all-rounder handles it all, taking you from the main route to more adventurous options with confidence and control.
KEY PERFORMANCE FACTORS
Balanced road geometry
Frame is specifically engineered to produce a balanced, all-rounder feel that blends confident rider positioning with agile cornering and acceleration.
Smooth ride quality
Innovative D-Fuse seatpost reduces road shocks and vibrations, and a Giant WheelSystem lets you run tubeless tires up to 38mm for a smoother ride quality and reduced risk of flats.
Total control
Seamless disc brake integration, including flat mounts and 12mm front and rear thru-axles, produces more consistent braking power for better control, even in wet weather and on rough roads.
| Size | Rider Height |
|---|---|
| S | 5’5” to 5’9” |
| M | 5’7” to 5’11” |
| ML | 5’10” to 6’2” |
| L | 6’0” to 6’4” |
| XL | 6’2” to 6’6” |

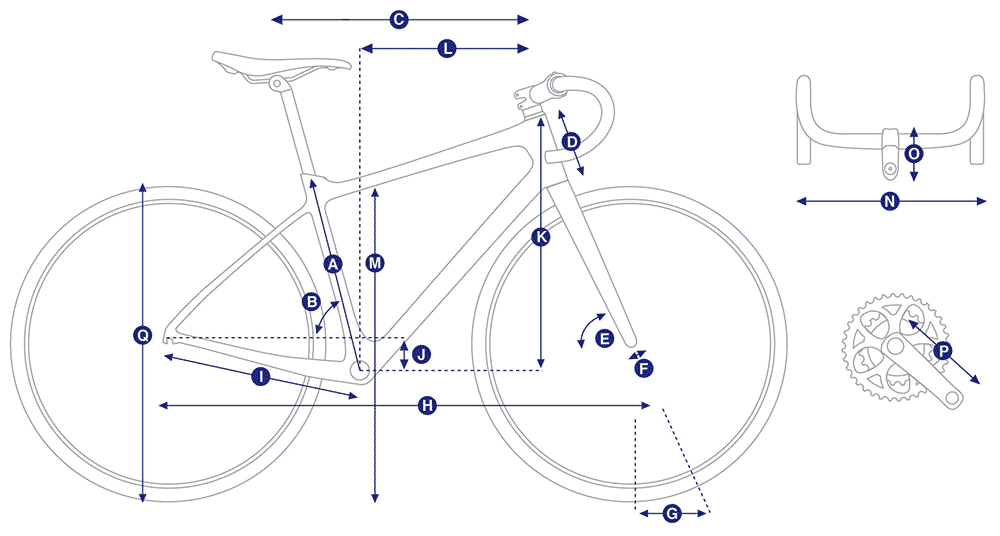

| SIZE | S | M | ML | L | XL |
|---|---|---|---|---|---|
| A SEAT TUBE LENGTH (mm) | 465 | 500 | 535 | 555 | 585 |
| B SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C TOP TUBE LENGTH (mm) | 535 | 550 | 565 | 580 | 595 |
| D HEAD TUBE LENGTH (mm) | 135 | 150 | 170 | 190 | 215 |
| E HEAD TUBE ANGLE | 71.8° | 72.0° | 72.5° | 72.5° | 72.5° |
| F FORK RAKE (mm) | 53 | 53 | 53 | 53 | 53 |
| G TRAIL (mm) | 61.3 | 59.6 | 56.4 | 56.4 | 56.4 |
| H WHEELBASE (mm) | 1003 | 1011 | 1015 | 1031 | 1046 |
| I CHAIN STAY LENGTH (mm) | 422 | 422 | 422 | 422 | 422 |
| J BOTTOM BRACKET DROP (mm) | 80 | 80 | 80 | 80 | 80 |
| K STACK (mm) | 559 | 574 | 595 | 614 | 638 |
| L REACH (mm) | 375 | 380 | 383 | 392 | 400 |
| M STAND OVER HEIGHT (mm) | 759 | 783 | 810 | 829 | 856 |
| N HANDLEBAR WIDTH (mm) | 400 | 420 | 420 | 440 | 440 |
| O STEM LENGTH (mm) | 90 | 100 | 100 | 110 | 110 |
| P CRANK LENGTH (mm) | 170 | 172.5 | 172.5 | 175 | 175 |
| Q WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | ALUXX-Grade Aluminum, disc |
|---|---|
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, disc |
| Rims | Giant S-R2 Disc wheelset |
| Hubs | Giant S-R2 Disc wheelset |
| Spokes | Giant S-R2 Disc wheelset |
| Tires |
Giant S-R3 AC, 700x32c (34mm) 38mm max tire size |
| Bottom Bracket | cartridge |
| Crankset | FSA Tempo, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Shifters | Shimano Claris |
| Front Derailleur | Shimano Claris |
| Rear Derailleur | Shimano Claris |
| Cassette/Freewheel | Shimano CS-HG50, 11x34 |
| Chain | KMC Z72 |
| Brakes | Tektro MD-C550 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Claris |
| Handlebars | Giant Connect XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Tape/Grips | Velo cork tape with gel |
| Stem | Giant Sport XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:110mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Approach |
| Pedals | Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Hematite / Small | 04712878712003 | 2200038204 | CON19951302E |
| Hematite / Medium | 04712878712010 | 2200038205 | CON19138186E |
| Hematite / Medium/Large | 04712878712027 | 2200038206 | CON20465625E |
| Hematite / Large | 04712878712034 | 2200038207 | CON1941020E |
| Hematite / X-Large | 04712878712041 | 2200038208 | CON20709528E |
| Black / Small | 04712878711938 | 2200038104 | CON16450065K |
| Black / Medium | 04712878711945 | 2200038105 | CON16875404K |
| Black / Medium/Large | 04712878711952 | 2200038106 | CON17596413K |
| Black / Large | 04712878711969 | 2200038107 | CON16375889K |
| Black / X-Large | 04712878711976 | 2200038108 | CON17419353K |
